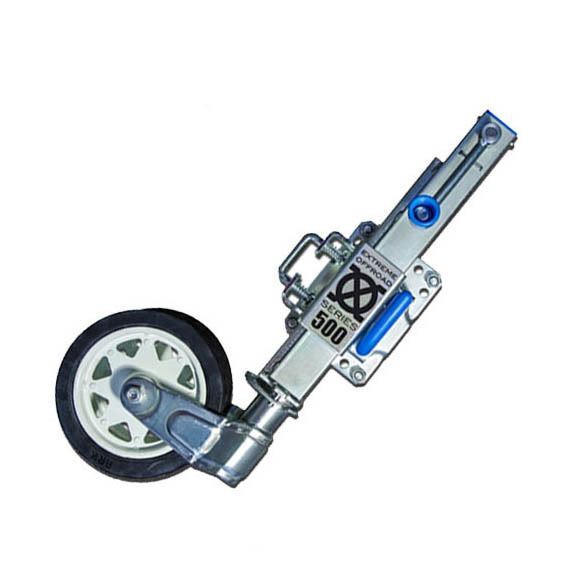

ARK XO500 OFF ROAD TRAILER JOCKEY WHEEL

Ark XO Series Heavy Duty Jockey Wheel 500

Ark’s new Extreme Off road Series (XO) Jockey Wheel is probably the toughest, most advanced Jockey Wheel in Australia today. But not only is it tough, it’s also versatile – with multiple height options, a highly maneuverable trailing yoke design and 5 different yoke locking positions.

Features

Magnetic, removable, side-winding handle

• Easier raising & lowering of trailers/caravans - away from stone guards, toolboxes or jerry can holders

• Magnetic, removable handle ensures safe stowage and prevents damage in offroad situations

Heavy duty body with 500kg rating

• Increases load carrying capacity and eliminates the likelihood of “bend” under weight

4 x adjustable height positions

• 250mm height adjustability at each of the 4 positions, whilst maintaining a central swivel point for extra strength

Heavy duty swivel clamp

• 4 bolt pivot point ensures no more bowing under weight

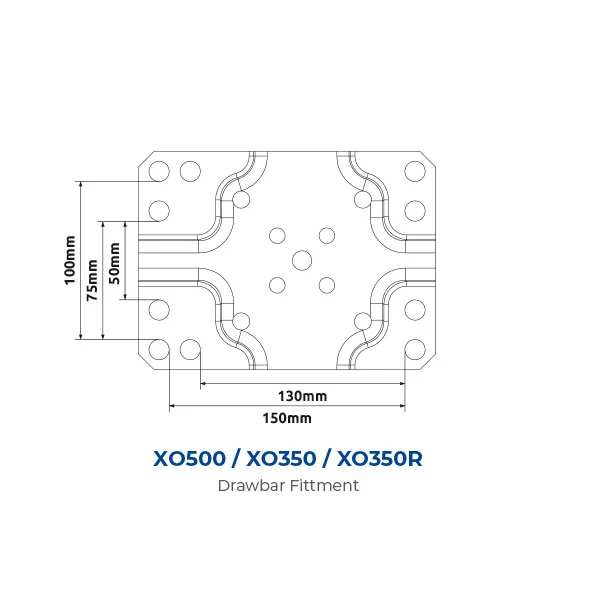

• Suitable for 50mm, 75mm, 100mm, and 150mm drawbars

• Comes with mounting hardware - no more welding onto drawbars

Easy-pivot trailing yoke design

• Wheel pivots easily, even under heavy load or on soft ground

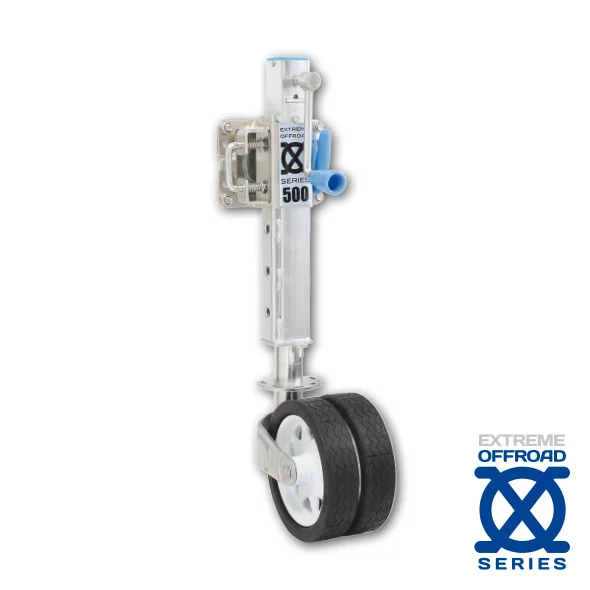

Dual wheel with sealed bearings & offroad tread

• Increases offroad grip and spreads the load

Variable yoke lock

• Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc…

Rust resistant finish

• Salt spray tested for 600 hours

What are the key differences between the Ark XO 500 and XO 750 jockey wheels?

The Ark XO 500 and XO 750 jockey wheels differ primarily in their load capacity and features. The XO 500 has a 500kg rating, suitable for lighter trailers and camper trailers, while the XO 750 offers a 750kg rating, ideal for heavier loads. Additionally, the XO 750 includes more height adjustment options and a sturdier design for extreme off-road conditions

How do I properly maintain my Ark XO jockey wheel for long-term use?

To maintain your Ark XO jockey wheel, regularly clean it to remove dirt and debris, especially after off-road use. Check the bearings and yoke lock for wear and tear, and lubricate moving parts as needed. Ensuring the jockey wheel is properly stowed when not in use will also help prevent damage
