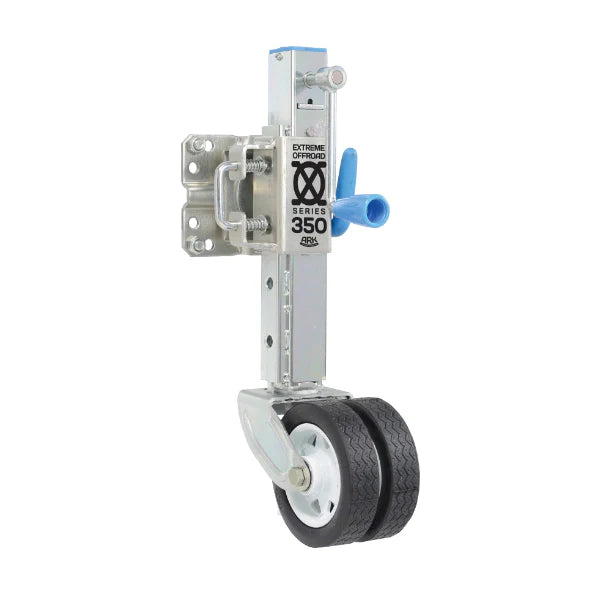

XO350 OFF ROAD TRAILER JOCKEY WHEEL by ARK

The Extreme Offroad Series (XO) Jockey Wheel is probably the toughest, most advanced Jockey Wheel available. But not only is it tough, it’s also versatile – with multiple height options, a highly maneuverable trailing yoke design and 5 different yoke locking positions.
Features include:

• Magnetic, removable, side-winding handle: Easier raising & lowering of trailers/RV's - away from stone guards, toolboxes or jerry can holders. This also ensures safe stowage and prevents damage to the handle in off road situations
• Strengthened body with 350kg tongue weight rating: Increases load carrying capacity and eliminates the likelihood of “bend” under weight
• 3x adjustable height positions:
• 125mm (5”) of adjustability across 3 height positions
• 175mm (7”) of additional height adjustability (screw travel) at each of the 3 positions, whilst maintaining a central swivel point for extra strength
• Minimum height (mounting centre to ground) – 245mm (~9.5”)*
• Maximum height (mounting centre to ground) – 550mm (~21.5”)*
• Maximum height when moving trailer – 475mm (~19”)
• Maximum screw travel lift when moving trailer – 110mm (4.25”)
• Heavy duty swivel clamp: 4 bolt pivot point ensures no more bowing under weight. Suitable for 50mm, 75mm, 100mm, 130mm and 150mm (approx 2" - 6") height drawbars
• Comes with mounting hardware - no more welding onto drawbars
• Easy-pivot trailing yoke design: Wheel pivots easily, even under heavy load or on soft ground
• Dual wheel with sealed bearings & offroad tread increases offroad grip and spreads the load
• Variable yoke lock: Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc…
• Rust resistant finish -Salt spray tested for 600 hours

* The XO350 is best suited to lower clearance trailers such as ATV, Boat or smaller utility trailers being used off road and on road. For higher clearance trailers with larger tires or lift, we recommend either the XO500 or XO750 models.
